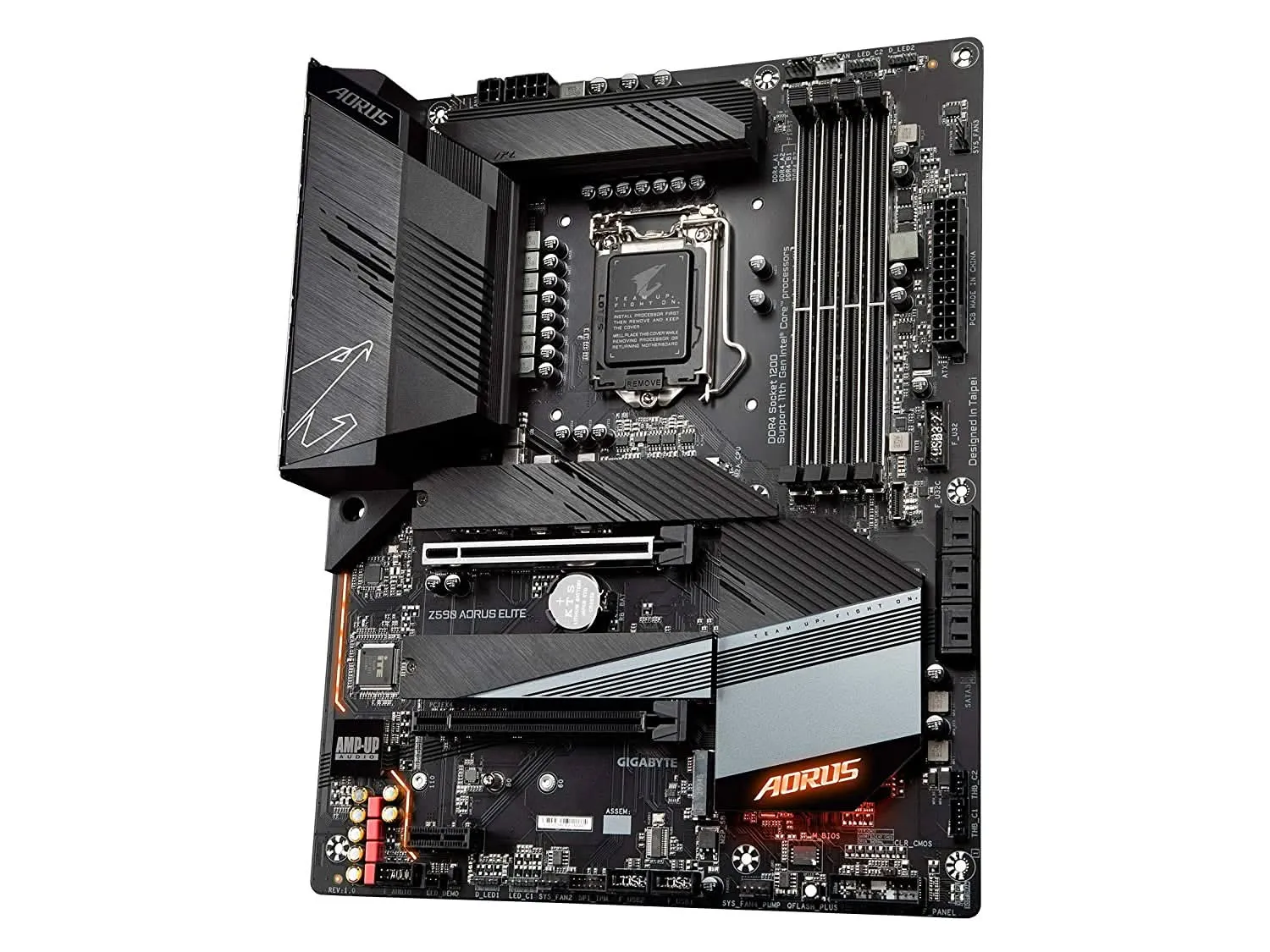

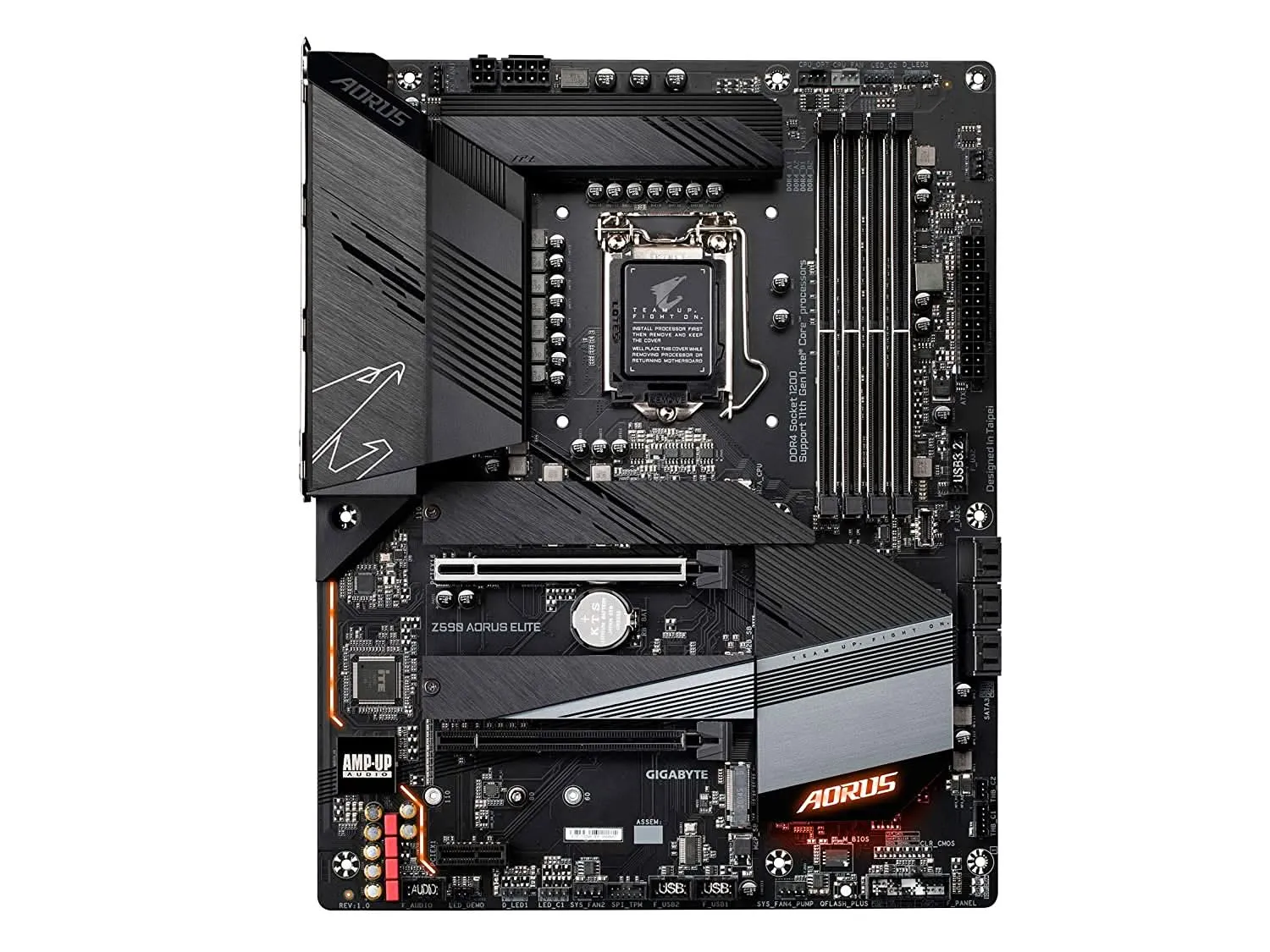

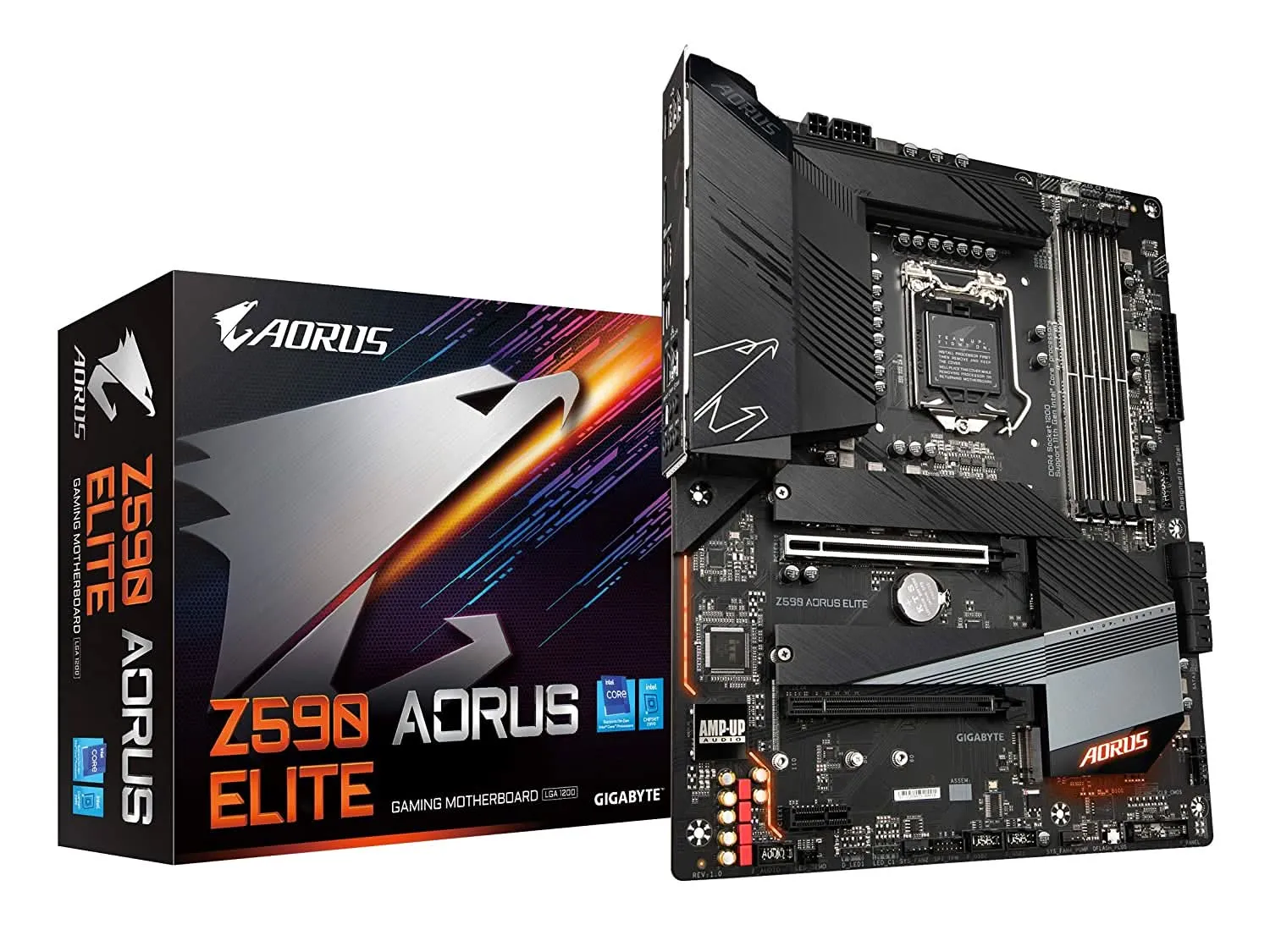

| Model | Z590 AORUS ELITE |
| CPU | LGA1200 package: |
| 1. 11th Generation IntelÆ Coreô i9 processors / IntelÆ Coreô i7 processors / IntelÆ Coreô i5 processors | |
| 2. 10th Generation IntelÆ Coreô i9 processors / IntelÆ Coreô i7 processors / IntelÆ Coreô i5 processors / IntelÆ Coreô i3 processors/ IntelÆ PentiumÆ processors / IntelÆ CeleronÆ processors* | |
| * Limited to processors with 4 MB IntelÆ Smart Cache, IntelÆ CeleronÆ G5xx5 family. | |
| 3. L3 cache varies with CPU | |
| (Please refer to "CPU Support List" for more information.) | |
| Chipset | IntelÆ Z590 Express Chipset |
| Memory | 1. 11th Generation IntelÆ Coreô i9/i7/i5 processors: |
| Support for DDR4 5400 (O.C)/ DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules | |
| 2. 10th Generation IntelÆ Coreô i9/i7 processors: | |
| Support for DDR4 2933/2666/2400/2133 MHz memory modules | |
| 3. 10th Generation IntelÆ Coreô i5/i3 /PentiumÆ/CeleronÆ processors: | |
| Support for DDR4 2666/2400/2133 MHz memory modules | |
| 4. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| 5. Dual channel memory architecture | |
| 6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| 7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| 8. Support for Extreme Memory Profile (XMP) memory modules | |
| (Please refer "Memory Support List" for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-IntelÆ HD Graphics support: |
| 1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz | |
| * Support for DisplayPort 1.2 version and HDCP 2.3. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | 1. RealtekÆ ALC1220-VB codec |
| * The back panel line out jack supports DSD audio | |
| 2. High Definition Audio | |
| 3. 2/4/5.1/7.1-channel | |
| 4. Support for S/PDIF Out | |
| LAN | RealtekÆ 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) |
| Multi-Graphics Technology | Support for AMD Quad-GPU CrossFireô and 2-Way AMD CrossFireô technologies |
| Expansion Slots | 1. 1 x PCI Express x16 slot, running at x16 (PCIEX16) |
| * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| (The PCIEX16 slot conforms to PCI Express 4.0 standard.)* | |
| *Supported by 11th Generation processors only. | |
| 2. 1 x PCI Express x16 slot, running at x4 (PCIEX4) | |
| 3. 1 x PCI Express x1 slot | |
| (PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.) | |
| Storage Interface | CPU: |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* | |
| *Supported by 11th Generation processors only. | |
| Chipset: | |
| 1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB) | |
| 2. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) | |
| 3. 6 x SATA 6Gb/s connectors | |
| Support for RAID 0, RAID 1, RAID 5, and RAID 10 | |
| * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. | |
| IntelÆ Optaneô Memory Ready | |
| USB | Chipset: |
| 1. 1 x USB Type-CÆ port on the back panel, with USB 3.2 Gen 2x2 support | |
| 2. 1 x USB Type-CÆ port with USB 3.2 Gen 2 support, available through the internal USB header | |
| 3. 2 x USB 3.2 Gen2 Type-A ports (red) on the back panel | |
| 4. 5 x USB 3.2 Gen1 ports (3 ports on the back panel, 2 ports available through the internal USB header) | |
| Chipset 2 USB 2.0 Hub: | |
| 1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1. 1 x 24-pin ATX main power connector |
| 2. 1 x 8-pin ATX 12V power connector | |
| 3. 1 x 4-pin ATX 12V power connector | |
| 4. 1 x CPU fan header | |
| 5. 1 x water cooling CPU fan header | |
| 6. 3 x system fan headers | |
| 7. 1 x system fan/water cooling pump header | |
| 8. 2 x addressable LED strip headers | |
| 9. 2 x RGB LED strip headers | |
| 10. 6 x SATA 6Gb/s connectors | |
| 11. 3 x M.2 Socket 3 connectors | |
| 12. 1 x front panel header | |
| 13. 1 x front panel audio header | |
| 14. 1 x USB Type-CÆ header, with USB 3.2 Gen 2 support | |
| 15. 1 x USB 3.2 Gen1 header | |
| 16. 2 x USB 2.0/1.1 headers | |
| 17. 2 x Thunderboltô add-in card connectors | |
| 18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 module only) | |
| 19. 1 x Clear CMOS jumper | |
| 20. 1 x Q-Flash Plus button | |
| ?All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. | |

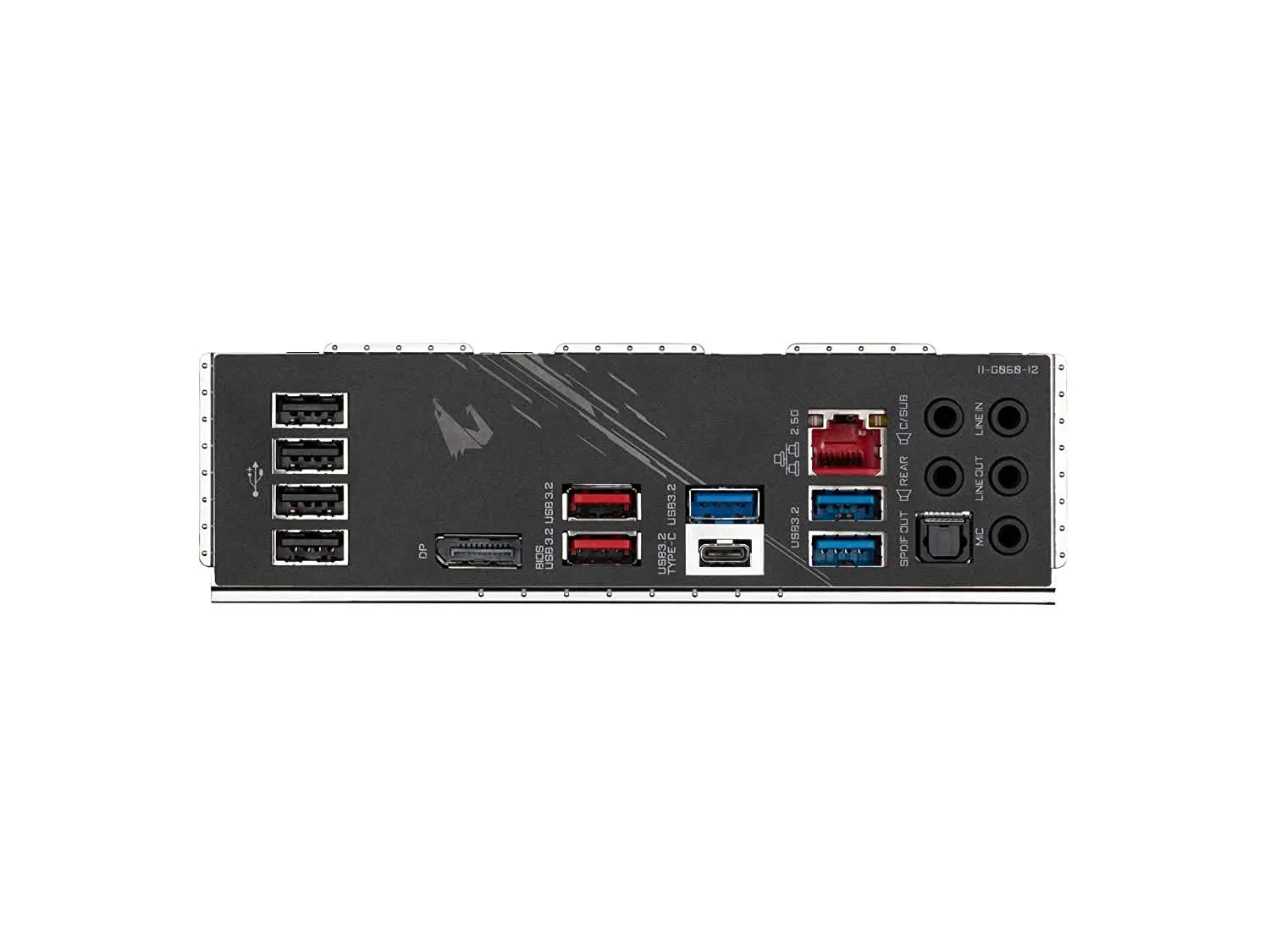

| Back Panel Connectors | 1. 1 x USB Type-CÆ port, with USB 3.2 Gen 2x2 support |
| 2. 2 x USB 3.2 Gen 2 Type-A ports (red) | |
| 3. 3 x USB 3.2 Gen 1 ports | |
| 4. 4 x USB 2.0/1.1 ports | |
| 5. 1 x DisplayPort | |
| 6. 1 x RJ-45 port | |
| 7. 1 x optical S/PDIF Out connector | |
| 8. 5 x audio jacks | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | 1. Voltage detection |
| 2. Temperature detection | |
| 3. Fan speed detection | |
| 4. Water cooling flow rate detection | |
| 5. Fan fail warning | |
| 6. Fan speed control | |
| * Whether the fan speed control function is supported will depend on the fan you install. | |
| BIOS | 1. 1 x 256 Mbit flash |
| 2. Use of licensed AMI UEFI BIOS | |
| 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | 1. Support for APP Center |
| * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| @BIOS | |
| EasyTune | |
| Fast Boot | |
| Game Boost | |
| ON/OFF Charge | |
| RGB Fusion | |
| Smart Backup | |
| System Information Viewer | |
| 2. Support for Q-Flash Plus | |
| 3. Support for Q-Flash | |
| 4. Support for Xpress Install | |
| Bundled Software | 1. NortonÆ Internet Security (OEM version) |
| 2. RealtekÆ 8125 Gaming LAN Bandwidth Control Utility | |
| Operating System | Support for Windows 10 64-bit |
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm |
| Warranty | 3 Years Manufacturer's Warranty |
