The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.

Specifications

• 2 zone stereo mixer with mono utility output
• Both stereo zones can be configured to run as mono
• Utility output is constant OdB
• Utility music source is selectable via internal jumper
• 6 stereo line inputs
• Line 6 priority over other input sources in zone 1 only
• Remote music mute
• Microphone access contacts for paging to all 3 zones
• 100Hz high pass filter on all microphone inputs
• Two band microphone EQ
• Remote level control in each zone using RL1

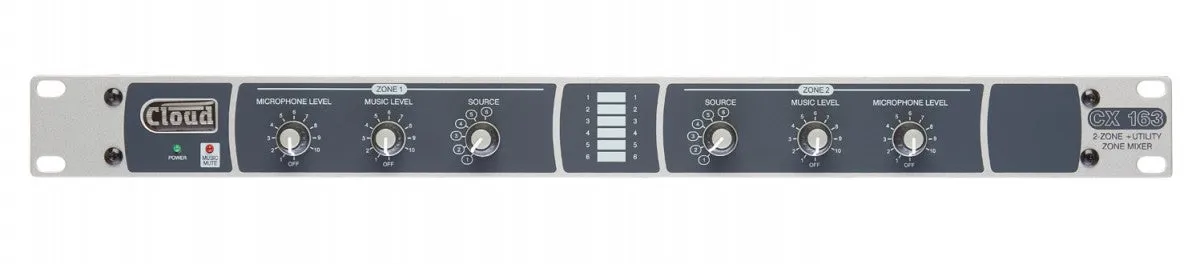

• Front panel controls give microphone level, music source and volume
• EQ card option
